My Pivot Compo-X gauges.
Wednesday, February 25, 2009
Monday, February 23, 2009
Rainbow Audio SL100
| SL 100 | |
| 100 mm/4“ | |
| Part Number | 231145 |
| Peak power | 60 Watt |
| Power rating | 30 Watt |
| Minimum amplifier power | - |
| Sensitivity | 90 dB 1W/1m |
| Frequency response | 70 - 22.000 Hz |
| Impedance | 4 Ohm |
| Slope | 6 dB |
| Crossover frequency | 4.800 Hz |
| Thermal protection | PTC |
| Acoustic volume w/o ferrofluid | - |
| Woofer | SL 100 |
| Mounting depth w/o/w. Ring | 48 / 48 mm |
| External Ø w/o/w. Ring | 102 / 130 mm |
| External Ø w/o/w. Ring | 129 mm |
| Installation Ø | 92 mm |
| Fastening Ø | 115 mm |
| Midrange | - |
| Mounting depth w/o/w. Ring | - |
| External Ø w/o/w. Ring | - |
| External Ø with edges | - |
| Installation Ø | - |
| Fastening Ø | - |
| Tweeter | CAL 20 Silk |
| Mounting depth | - |
| External Ø | - |
| Installation Ø | - |
| Fastening Ø | - |
Sunday, February 22, 2009
4A-GZ ECU
Pictures of 4A-GZU's ECU. I took these pictures, so Maladar could check the possibility of same connectors/terminals between old MA70 Supra (86-88) and my MR2. The idea behind this is, that the AEM EMS might have the same connectors and there would be only minimum amount of wire-hassle to get the AEM box working with my car.
I googled for days to get even a half-decent picture of the ECU, but nothing. I don't know if had bad searchwords or something, but I got nothing. Even japanese pages were dead end.
So, here are the pictures of the ECU. Pins, bottom side, top side and everything. I had to leave the ECU hanging in the boot, because my utility shop didn't have the needed toolkit available. I really hope, that the Kamasa set I ordered is ready tomorrow.
My camera was in Copenhagen, so I had to borrow my mom's Sony. Turned out, that the Sony is a really nice camera. The EXIF says that it was a Sony DSC-W120.
Wednesday, February 4, 2009
BBS RAII
Left: BBS RAII on Volkswagen something. I'm not that good with those. Below: Old BBS catalog showing the RAII.
BBS RAII
"A set of 14 inch 38 offset 6.5 inches wide style 332 OEM Toyota rim option Gold BBS rims. Remeber, these are SUPER RARE this was an wheel option when your purchased a Toyota These were from the early 90's and while bbs made the ra2's the silver and gold was only painted per Toyota's request"
Well, this is what I found. Strikingly similar as my rims, but super rare? Yeah right. Gazillion old Jettas have same rims.
My BBS rims
It seems, that Toyota offered BBS RAII wheels as a option back in late '80s and early '90s. The design is almost same as in the old Jetta GLX, except Jetta had 5x bolt pattern.
I'll upload some pictures after I google around a bit.
Ok, I have RAII (RA2) wheels, but I still wonder, why I had that sticker inside the rim is saying BBS RG...
I'll upload some pictures after I google around a bit.
Ok, I have RAII (RA2) wheels, but I still wonder, why I had that sticker inside the rim is saying BBS RG...
Monday, February 2, 2009
What next?
Right now I'm using some Honda plugs on AW11. The reason behind this is me being klutz as usual. AW11 was parked on a slope, which managed to be too steep to pump gas from the tank to the engine. We pulled a lot of parts off the car and installed Honda plugs before Maladar asked if we could roll the car on flat. On the flat, AW11 started normally. I was pissed, relieved and embarassed at the same time.
So, next:
Spark plugs. Iridium ones.
Front wing needs some love and care too, clearly a job for Mr. Mikkonen. Also, thermostat needs to be changed, timing belt, water pump, cooling fluid, cooling system cap, steering wheel, air filter and whatnot.
I have two new Pivot Compo-X gauges sitting in the garage, waiting for installation. I "borrowed" this picture from the net:
Lots to do. Can't wait.
So, next:
Spark plugs. Iridium ones.
Front wing needs some love and care too, clearly a job for Mr. Mikkonen. Also, thermostat needs to be changed, timing belt, water pump, cooling fluid, cooling system cap, steering wheel, air filter and whatnot.
I have two new Pivot Compo-X gauges sitting in the garage, waiting for installation. I "borrowed" this picture from the net:
Lots to do. Can't wait.
Pictures from 2008 - Belt change
Well, this belt change was made on 18th of August. 95 thou and something on the odo.
Lower picture has a dead whale under the car. Upper picture shows how the modern technology is used in car maintenance (the tool is made of same high quality materials as the SST earlier)
Pictures from 2008 - Belt change

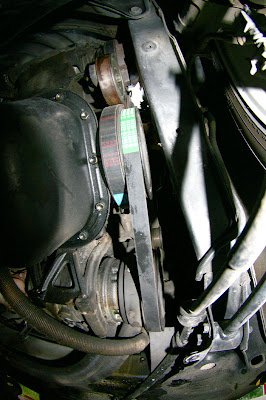

Beginning of the belt change. My plan was to change both belts, one running alternator and AC, and second one running water pump and supercharger.Everything went as planned, except one of the pulleys was stuck.
Pictures from 2008 - Aligning the lights
That's me.
Poking things with screwdriver.
Rims are BBS RG 15 x 6.5 +40, tires 195/50 Bridgestone SZ80.
Thanks Maladar!
Pictures from 2008 - Happy Funtime
Animals
Madmen
Dope fiends
Trippers
Pleasure seekers
Nighttime turns people into
Animals
Madmen
Dope fiends
Trippers
Pleasure seekers
Hustlers
Obsessives
Subverters
Pimpers
Hookers
Loners
Overdosers
Sirens
Nighttime turns people into
Animals
Madmen
Dope fiends
Trippers
Pleasure seekers
Hustlers
Perverters
Subverters
Pimpers
Posers
Voyeurs
Pleasure seekers
Zoo keepers
Pictures from 2008 - Gauges, Spares and parking
Water pump and other stuff. Water pump part no. is 16100-19155.
Wintertime - three months of garage
This is how we spend time with Maladar. Ghost Eleven and Forward MARCH in the undisclosed location, some levels below streetlevel.The winter sucks royally, I haven't had time and this blogsoftware isn't the best for this kind blogging. Everything has been against this.
